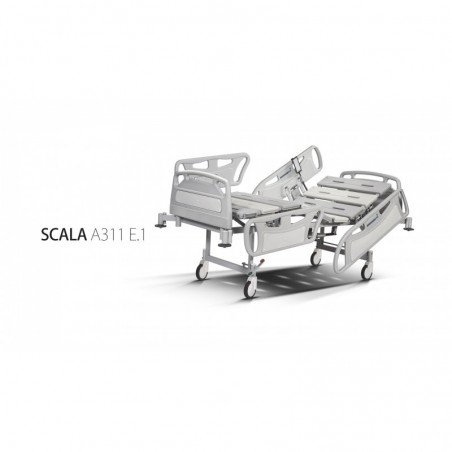

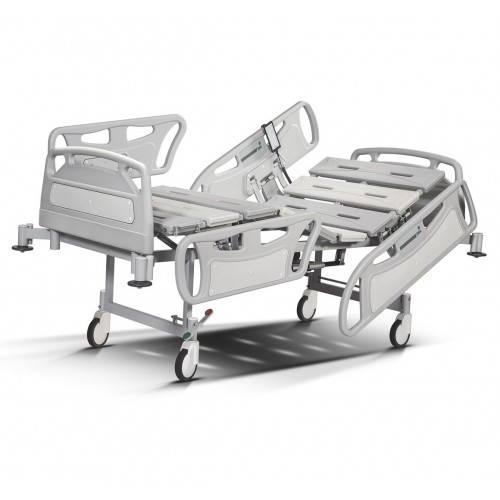

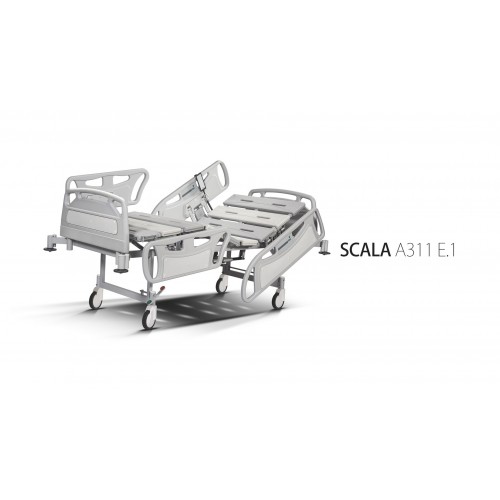

Pat Terapie Intensiva Scala A311E.1

 Mattress platform is four section, three cranks with integrated Two-Ply surface, rigid and strengthened chassis
o Backrest and knee raise adjustments are electrically
o Four segmented plastic sideboards
o Foot section is adjustable by means of a rack device
o Two functional positioning control is accessible
o Detachable head and foot boards
o Washable and disinfectable
o Air flow capability under the mattress
o Four castors with central / directional brakes
o Four rubber bumpers at each corner
o Main power supply 220V-50 Hz, 24 DC
o Max. power input 230 watt
o Electrical current protection Class2
o Electrical shock position Type B
o Duty cycle %10
o Dust proof and water resistant IPX4
o IV stand holder at each corner
o Traction holder

DIMENSION and BASIC INFORMATION
o Overall 2300 x 1110 x 634 (mm)
o Mattress platform 2000 x 900 (mm)
o Backrest angle 0? - 80?
o Knee raise angle 0? - 30?
o Castors 150 (mm) diameter central/ directional brakes
o Max. load 250 kg
o Max. patient load capacity 170 kg
o
ACCESSORIES
o IV stand
o Traction bar
o
STANDARDS
o ISO 9001: 2015
o ISO 13485: 2016
o IEC 60601-1
o IEC 60601-2-52
o EN ISO 14971
o EN ISO 15223 -1
o CE
