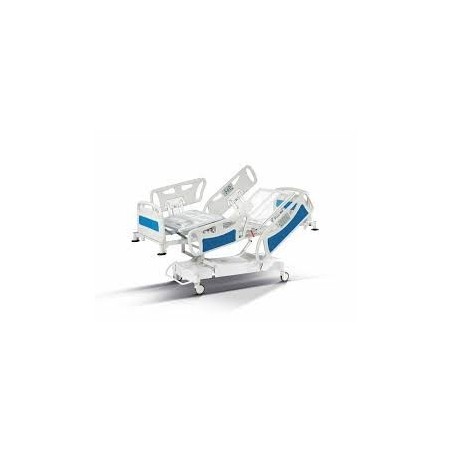

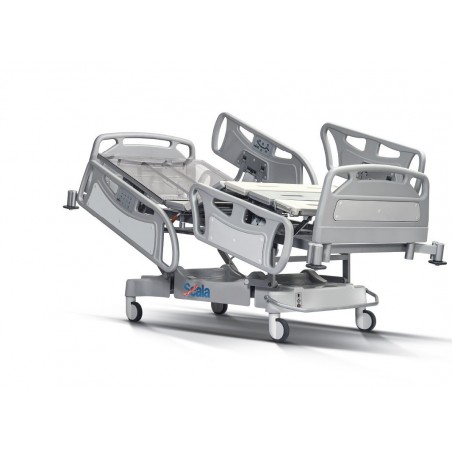

Pat Terapie Intensiva Scala L4401 PRO

o Mattress platform is four section, three cranks with integrated plastic Two-ply surface and strengthened chassis.
o Backrest, knee raise, Hi- Low and Trend/ Rev. Trend adjustments are electrically
o Backrest section is radiolucent with a cassette holder
o Four segmented plastic sideboards
o Positions can be adjusted and be locked through the ACP by nurse
o Three- functional positioning control accessible to the patient
o Detachable head and foot boards
o Washable and disinfectable
o Airflow capability under the mattress
o CPR handle on two sides for flattening ...backrest rapidly
o Electrical CPR is available for flattening bed rapidly
o Backup battery
o Four castors with central/directional brakes
o Foot section is adjustable by means of a rack device
o Four rubber bumpers at each corner
o Main power supply 220V-50 Hz, 24 DC
o Max. power input 500 watt
o Electrical current protection Class2
o Electrical shock position Type B
o Duty cycle %10
o Dust proof and water resistant IP66
o IV stand holder at each corner
o Traction holder
o Chest bottle holder
o Monkey Bar holder
o Urine bag holder

DIMENSION and BASIC INFORMATION
o Overall 2300 x 1100 (mm)
o Mattress platform 2000 x 900 (mm)
o Backrest angle 0? - 80?
o Knee raise 0? - 35
o Hi-Low 460 - 780 (mm)
o Trend / Rev. Trend angle +15? / -15?
o Castors 150 (mm) diameter central/ ...directional brakes
o Max. load 250 kg
o Max. patient load capacity 170 kg

ACCESSORIES
o IV stand
o Monkey Bar
o Traction Bar


STANDARDS
o ISO 9001: 2015
o ISO 13485: 2016
o IEC 60601-1
o IEC 60601-2-52
o EN ISO 14971
o EN ISO 15223-1
o CE
